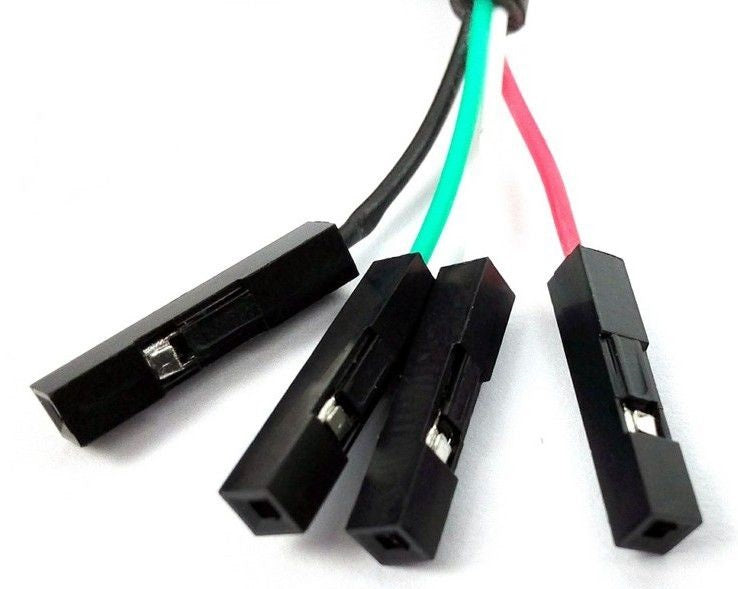

CP2102 USB To TTL Converter Cable 4 wire

The CP2102 USB to UART Bridge Controller is a versatile and easy-to-use solution for adding USB connectivity to your microcontroller or embedded system. This device simplifies the task of connecting devices to a USB host with its integrated USB and UART protocols. The permanently attached cable ensures a reliable and secure connection, eliminating the need for an external cable.

Features:

• Integrated USB Protocol: Full-Speed USB 2.0 compliant.
• UART Interface: Supports baud rates from 300 bps to 1 Mbps.
• Flow Control: Hardware and software flow control support.
• Flexible Power Options: Can be powered via USB or an external power source.
• Permanently Attached Cable: Ensures a stable and secure connection without the hassle of detachable cables.
• Easy Installation: Compatible with various operating systems including Windows, Mac, and Linux.
• Compact Design: Ideal for embedding in your custom applications.

Specifications:

• USB Compliance: Full-Speed (12 Mbps) USB Specification 2.0
• UART Support: Data format: 8 data bits, 1 stop bit, no parity (other formats are also supported)
• Baud Rates: Configurable from 300 bps to 1 Mbps
• Flow Control: RTS/CTS, XON/XOFF
• Operating Temperature Range: -40°C to +85°C
• Power Supply: 3.3V with 5V-tolerant I/O
• Cable Length: 100 cm.
• Driver Support: Windows, Mac OS, Linux



Driver:

 CP210x_Universal_Windows_Driver

Package Includes:

    1x  CP2102 USB To TTL Converter Cable
