Fastbit STM32 Nano V3 with 1.28" TFT LCD Display Module (CTP + µSD Slot)

Fastbit STM32 Nano with 1.28" TFT LCD Display

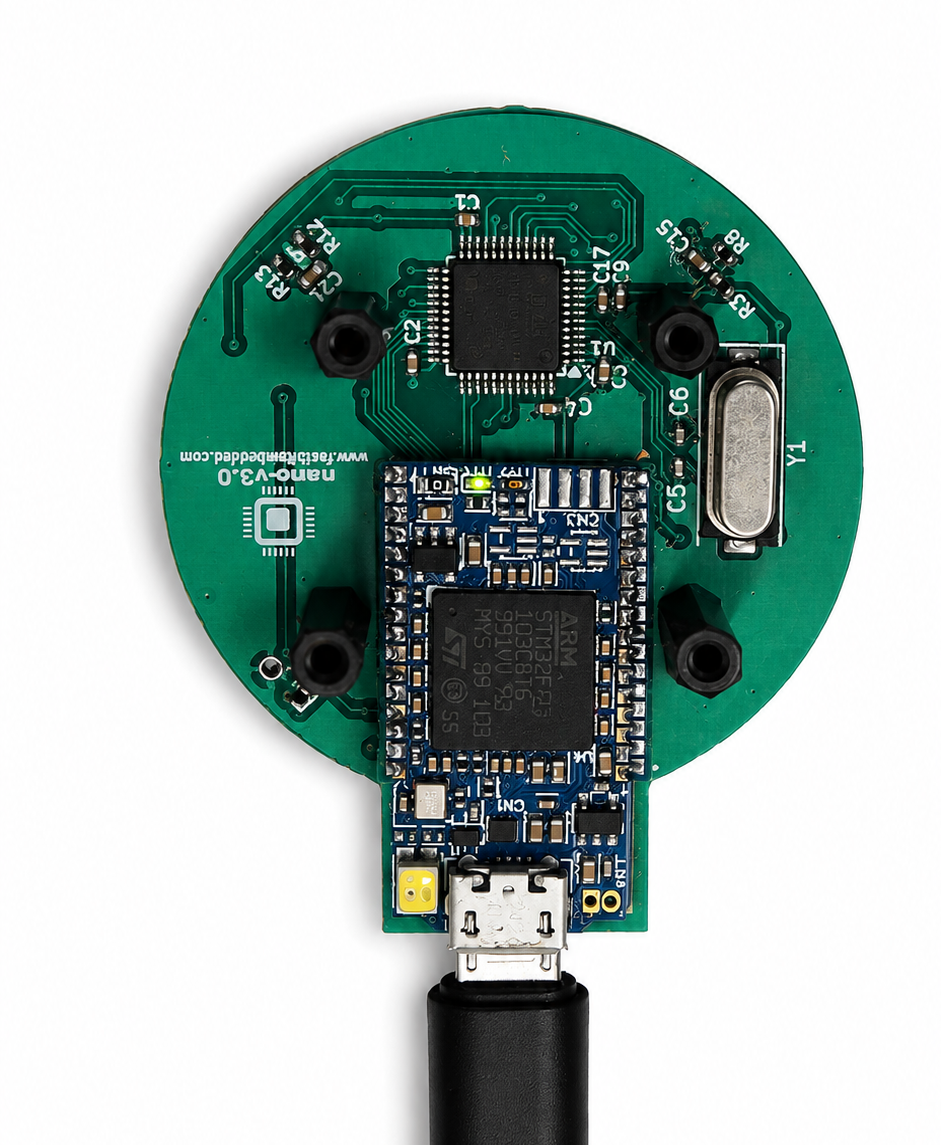

The Fastbit STM32 Nano Board, a powerful and versatile development platform, is at the heart of various embedded applications. Paired with the 1.28" TFT LCD Display and Capacitive Touch panel, this combination offers a robust foundation for DIY electronics projects. The Nano Board is equipped with an Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, and a 72 MHz CPU, making it ideal for high-performance tasks. It also features an MPU6050 motion sensor, an onboard ST-Link V3 debugger/programmer with a built-in virtual COM port (VCP), and stable external oscillators (8MHz and 32.768kHz) for precise timing.

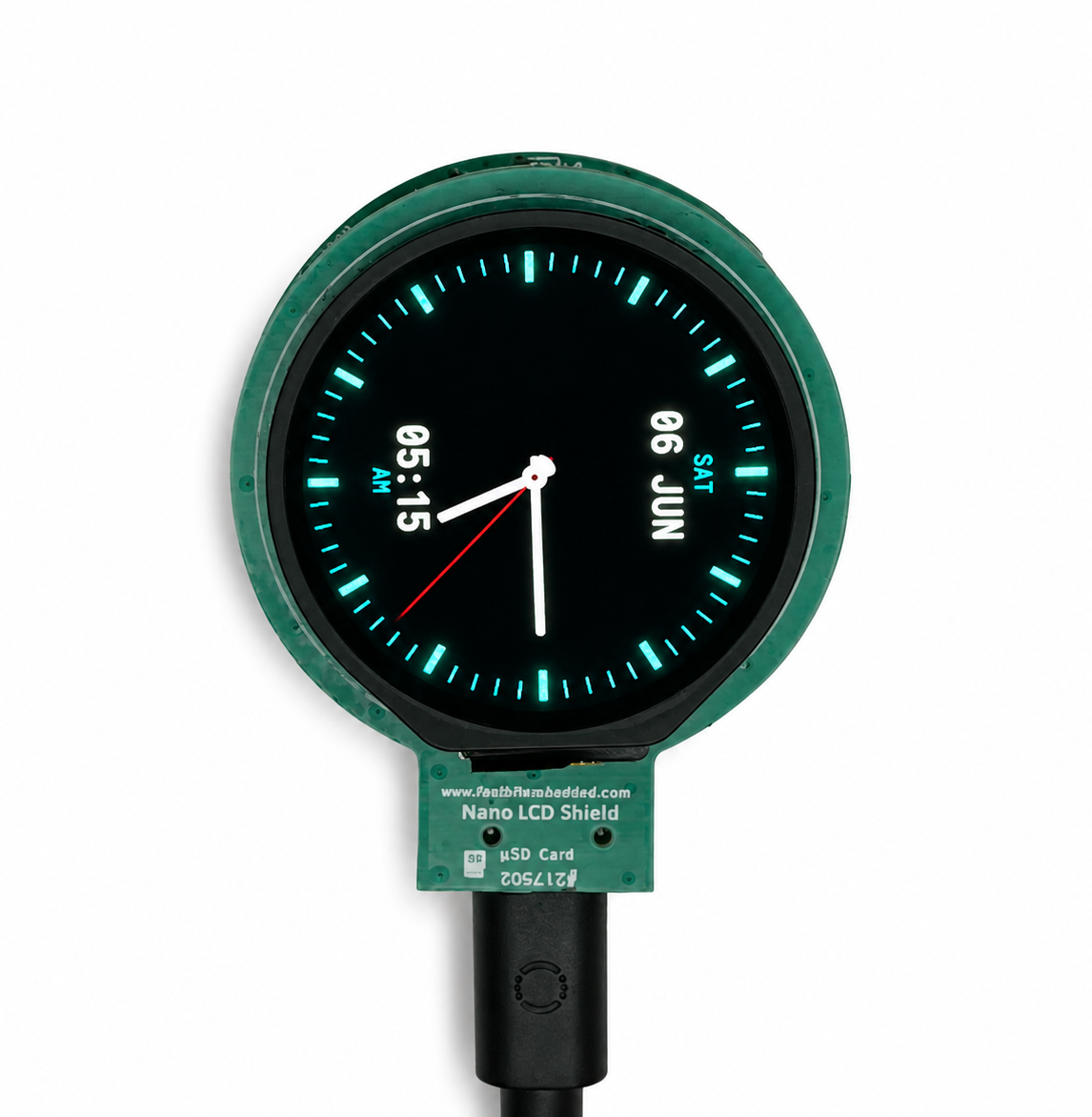

The accompanying 1.28" TFT LCD Display features a high-resolution 240x240 pixel screen powered by the GC9A01 LCD driver and includes a capacitive touch panel IC (CST816S) for a responsive touch experience. The display module also includes an SD card slot, supporting SPI mode (note: SD



 Schematic

Github

 User Manual

Free Video Course



Features

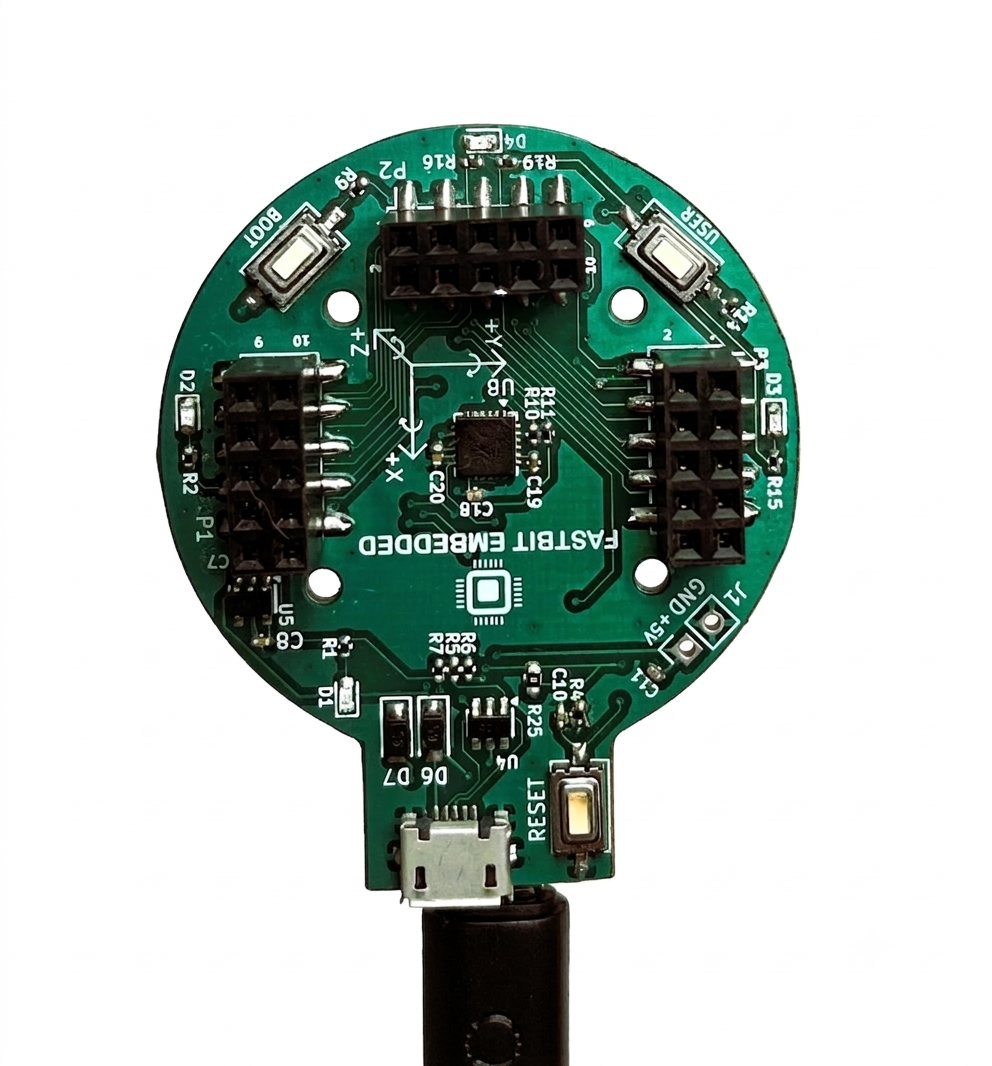

Fastbit STM32 Nano Board:

• Microcontroller: Arm Cortex-M4 core with DSP and FPU
• Memory: 256 Kbytes of Flash memory
• CPU Speed: 72 MHz
• Additional Features: MPU, CCM, 12-bit ADC (5 MSPS), PGA, comparators
• Integrated Components: MPU6050 sensor and onboard ST-Link V3 (with built-in virtual COM port)
• Oscillators: Stable external oscillators (8MHz and 32.768kHz)
• Programming & Debugging: Programmable and debuggable via the onboard ST-Link V3, with boot options from user flash or system memory — no external programmer required
• Design: Compact with 30 header pins for easy integration and expansion

Fastbit 1.28" TFT LCD with CTP and µ-SD card slot:

• Resolution: 240x240 pixels
• Screen Size: 1.28" (Circular)
• LCD Driver: GC9A01
• Touch Panel IC: CST816S (Capacitive Touch Panel)
• Interface: SPI
• Working Voltage: 3.3V
• SD Card Interface: Supports SPI Mode and SD Mode (SD Mode not compatible with STM32 Nano)

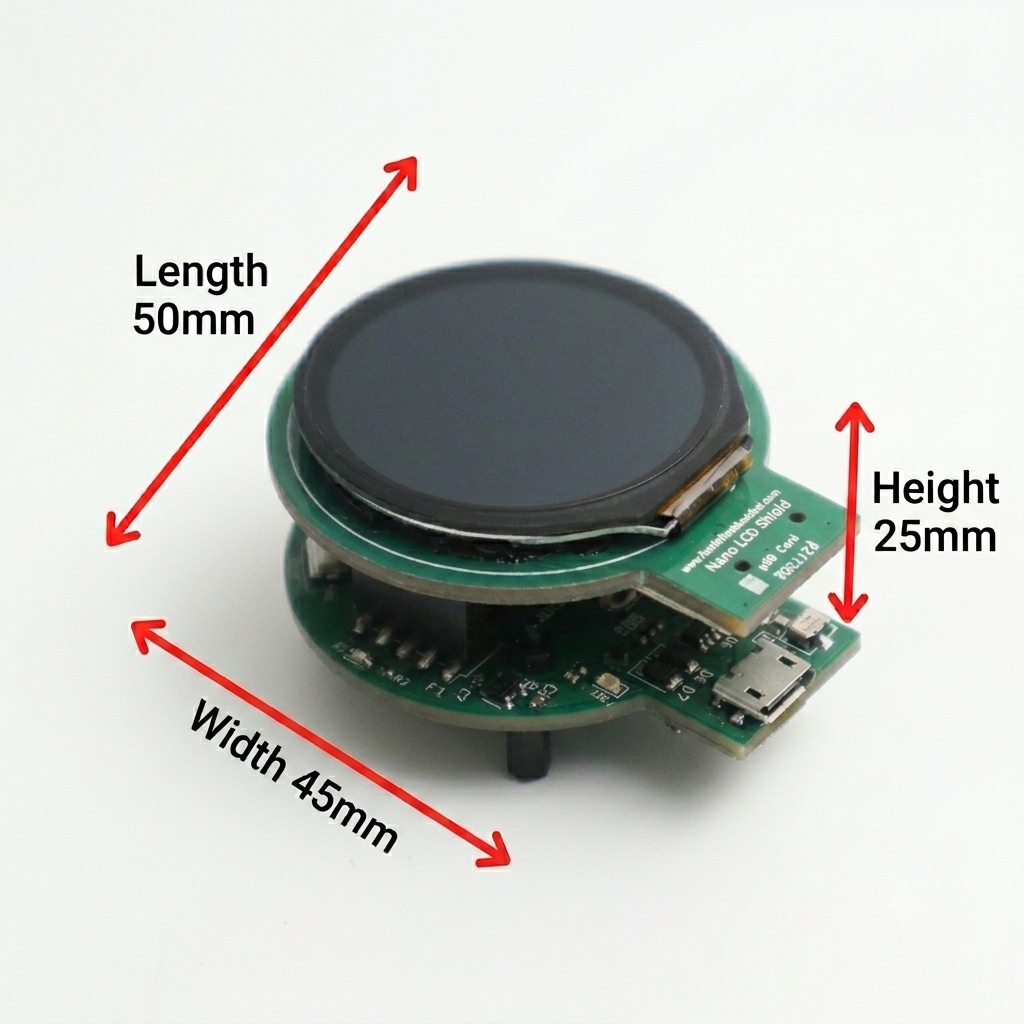

• Design: Compact and ideal for space-constrained applications
• Display Quality: High-resolution display providing crisp and vibrant visuals
• Reliable Touch Interface: Reliable and responsive touch input

Together, the Fastbit STM32 Nano Board and the 1.28" TFT LCD Display offer a comprehensive and versatile solution for developers of all levels, providing powerful processing capabilities alongside a high-quality user interface for embedded applications.

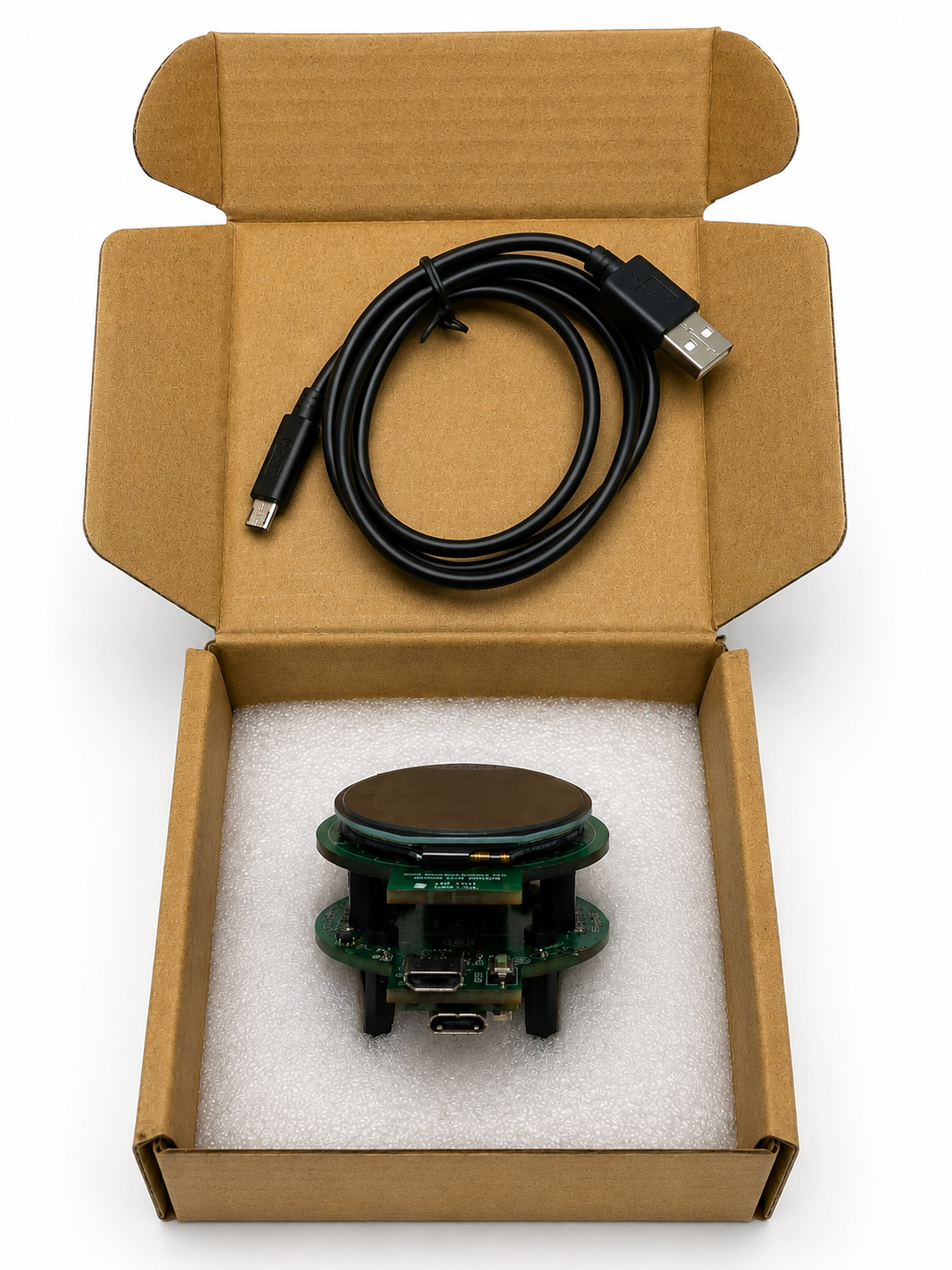

Package Includes:

• 1x Fastbit STM32 Nano board (with onboard ST-Link V3)
• 1x Micro-B USB cable (works with both the ST-Link and the external Micro-B port)
• 1x 1.28" TFT LCD Display
