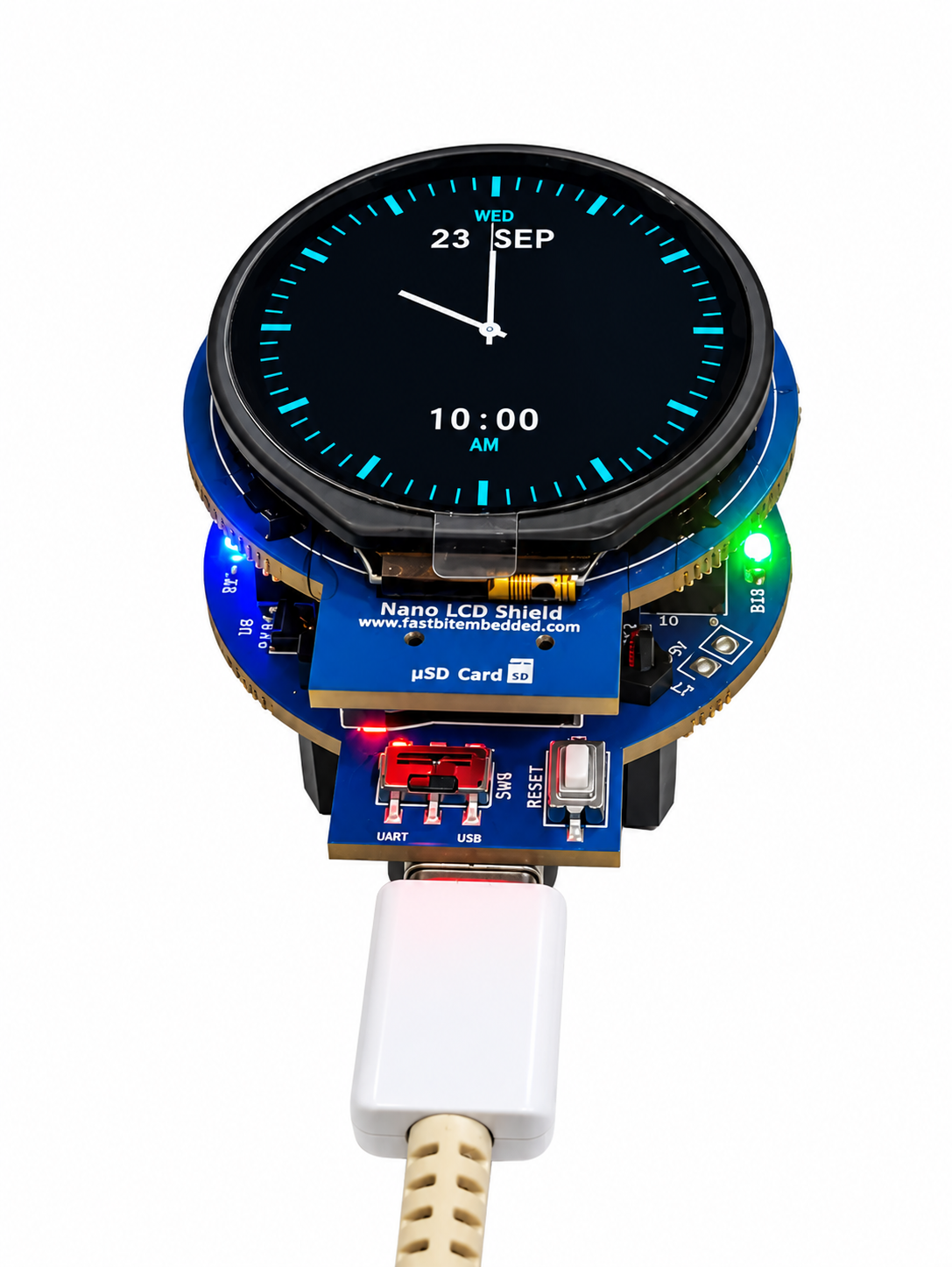

Fastbit STM32 Nano V2.1 with 1.28" TFT LCD Display

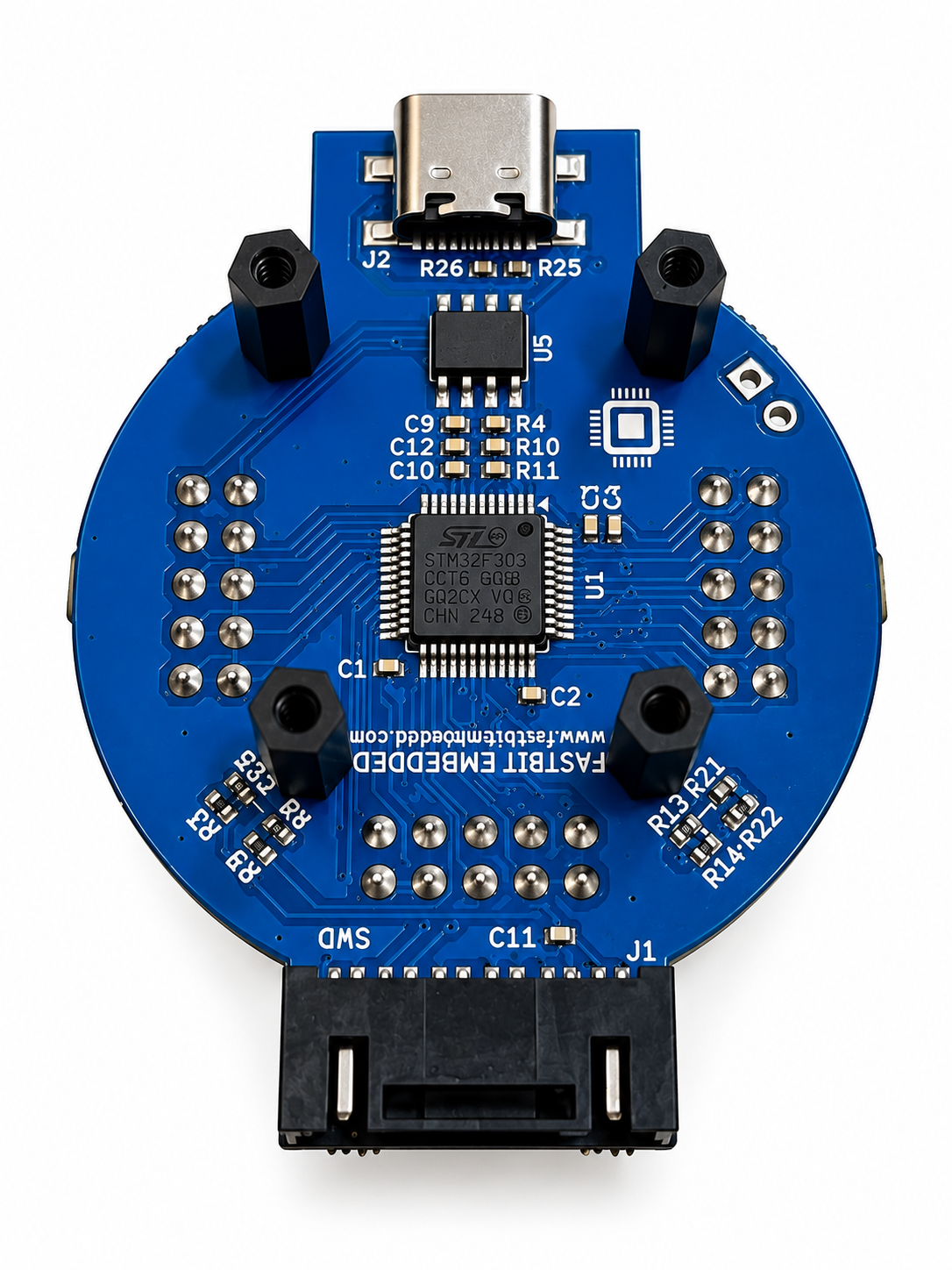

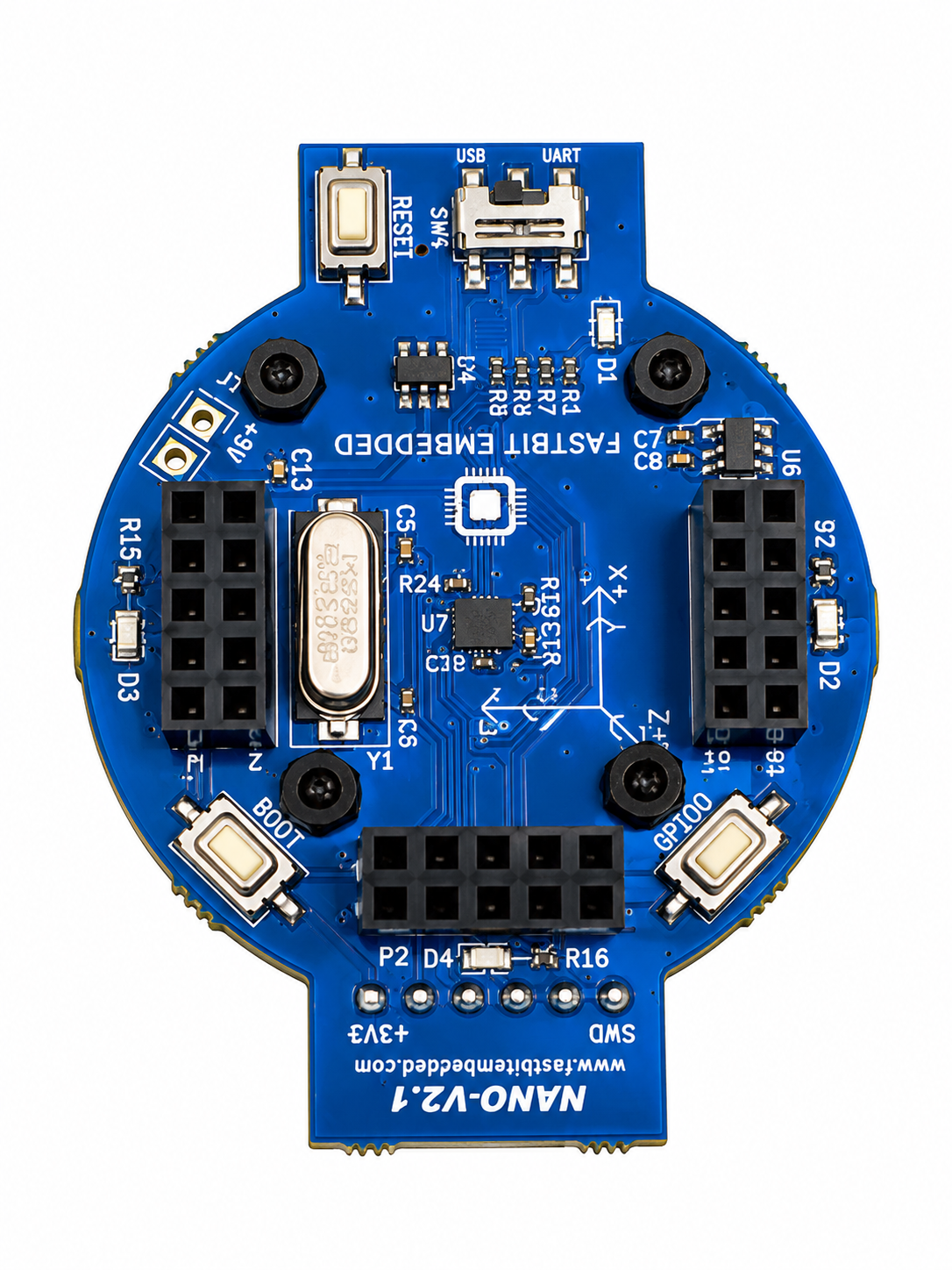

The Fastbit STM32 Nano Board, a powerful and versatile development platform, is at the heart of various embedded applications.

Paired with the 1.28" TFT LCD Display and Capacitive Touch panel, this combination offers a robust foundation for DIY

electronics projects. The Nano Board is equipped with an Arm Cortex-M3 core with DSP and FPU,

256 Kbytes of Flash memory, and a 72 MHz CPU, making it ideal for high-performance tasks.

It also features a BMI270 motion sensor, a USB to UART converter with a switchable USB mode select, and

a stable external oscillator (8MHz) for precise timing.

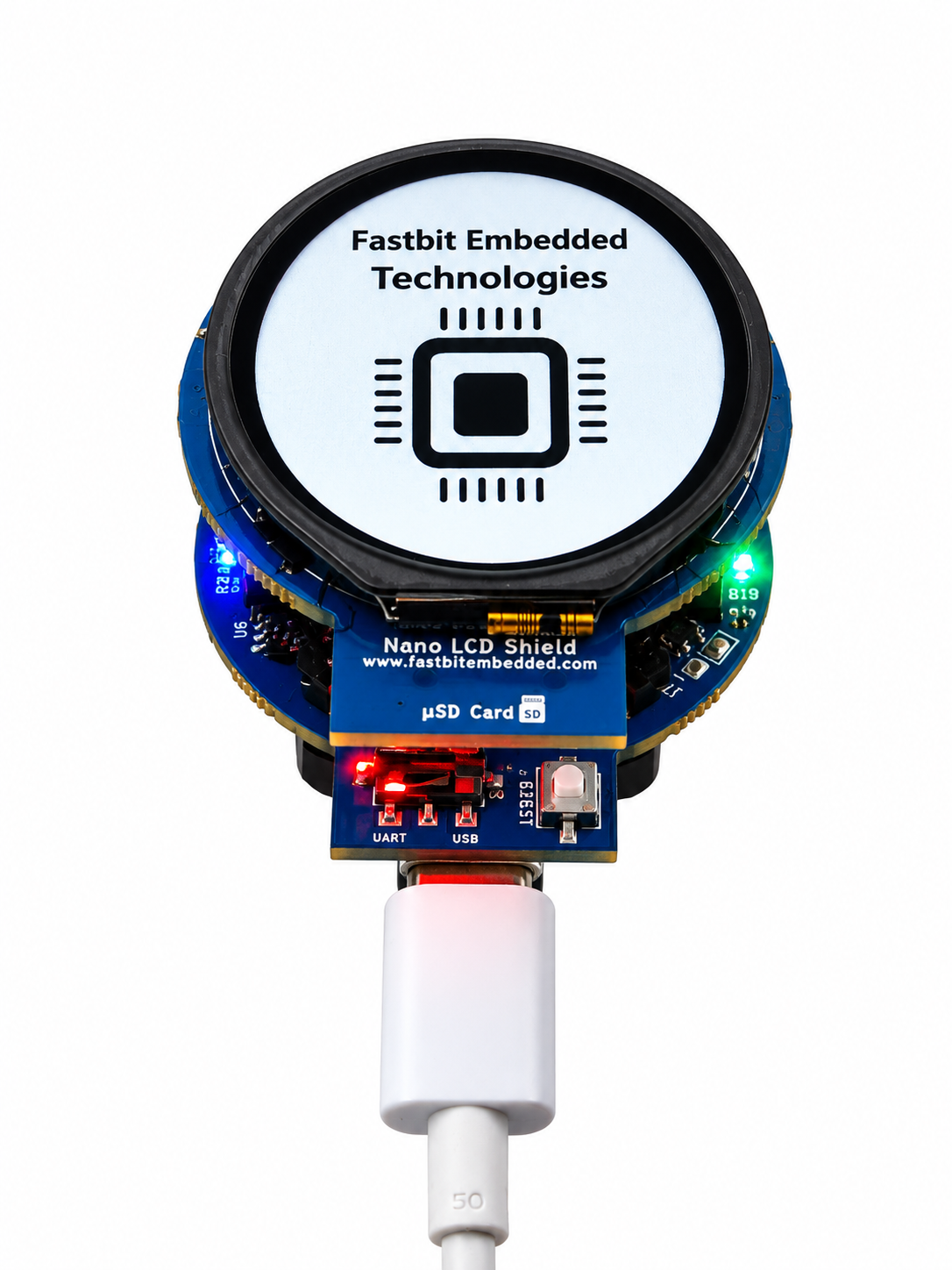

The accompanying 1.28" TFT LCD Display features a high-resolution 240x240 pixel screen powered by the GC9A01 LCD driver and

includes a capacitive touch panel IC (CST816S) for a responsive touch experience.

The display module also includes an SD card slot, supporting SPI mode (note: SD mode is not compatible with the STM32 Nano),

providing flexible data storage options.

Features

• Microcontroller: Arm Cortex-M3 core with DSP and FPU

• Memory: 256 Kbytes of Flash memory

• CPU Speed: 72 MHz

• Additional Features: MPU, CCM, 12-bit ADC (5 MSPS), PGA, comparators

• Integrated Components: BMI260 sensor and USB to UART converter

• Oscillators: Stable external oscillator (8MHz)

• Programming: Programmable via ST-Link with boot options from user flash or system memory

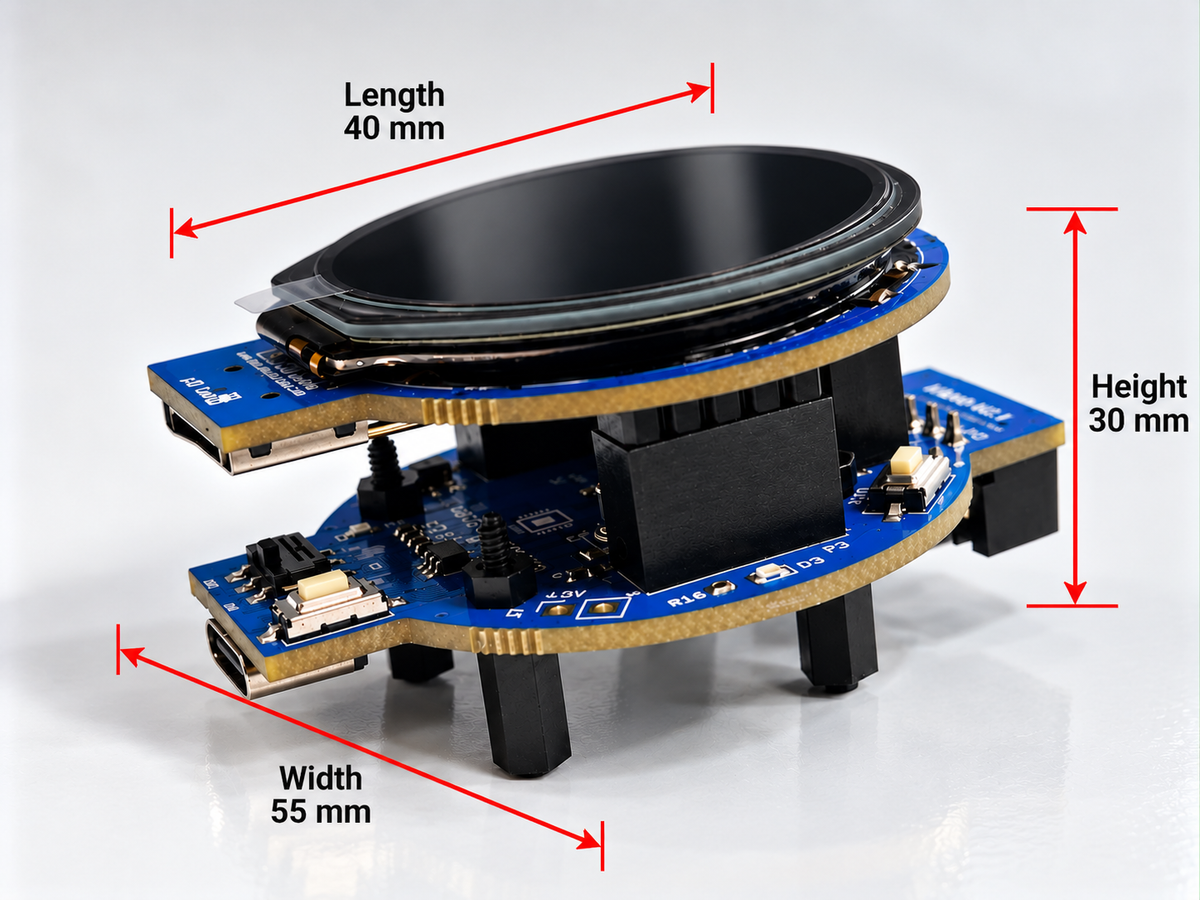

• Design: Compact with 30 header pins for easy integration and expansion


• Resolution: 240x240 pixels

• Screen Size: 1.28" (Circular)

• LCD Driver: GC9A01

• Touch Panel IC: CST816S (Capacitive Touch Panel)

• Interface: SPI

• Working Voltage: 3.3V

• SD Card Interface: Supports SPI Mode and SD Mode (SD Mode not compatible with STM32 Nano)

• Design: Compact and ideal for space-constrained applications

• Display Quality: High-resolution display providing crisp and vibrant visuals

• Reliable Touch Interface: Reliable and responsive touch input


Package Includes:
