Fastbit 32F407DISC_IoT_LCD_Shield

Note: This product includes only the shield. The STM32F407DISCOVERY board is NOT provided or shipped with it.

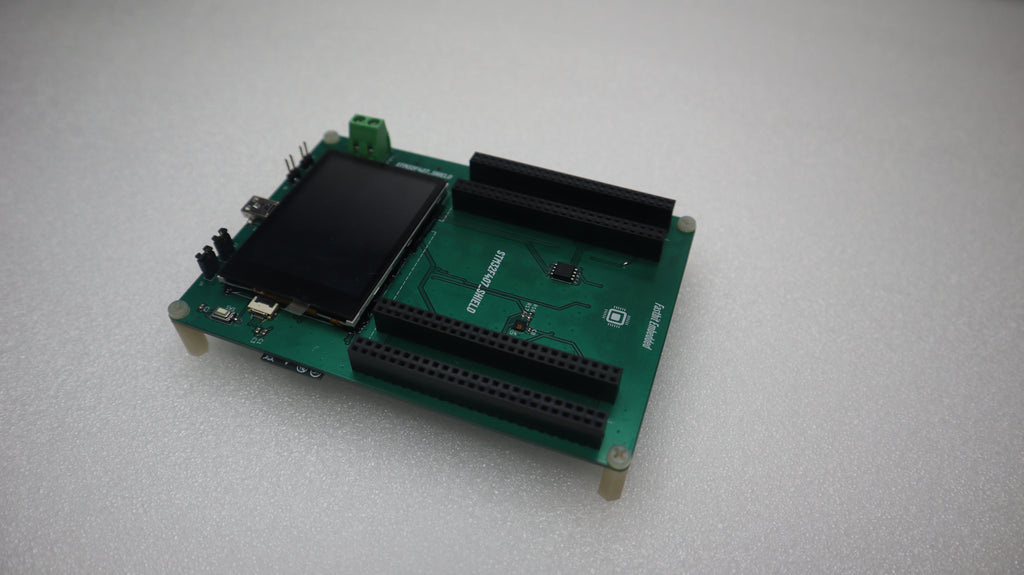

The Fastbit 32F407DISC_IoT_LCD_Shield is an all-in-one expansion board designed to supercharge your STM32F407 Discovery board for IoT and embedded development.

It features a 2.4-inch capacitive touch LCD, an ESP32-C6 wireless module (Wi-Fi 6, BLE, Zigbee, Thread), onboard temperature & humidity sensing (HDC1080), and CAN communication via the SN65HVD230 transceiver.

With built-in 16MB SPI NOR Flash, a microSD slot, and a USB-to-UART bridge (CP2102), the shield is ideal for applications like data logging, wireless sensor networks, remote control, or industrial interfaces.

Preloaded AT firmware makes the ESP32-C6 ready for UART-based IoT tasks, but it can also be re-flashed for full custom firmware development.

Whether you're building smart devices or connected systems, this shield brings display, connectivity, and industrial-grade communication to your STM32 projects - with minimal setup.

 Schematic  User Manual

Features:

Wireless Module

• ESP32-C6 with:

  • Wi-Fi 6 (802.11ax)

  • Bluetooth 5 (BLE)

  • Zigbee and Thread protocol support

• Preloaded with AT firmware for UART communication

• Re-flashable with custom firmware via USB

Compatibility

• Compatible with STM32F407 Discovery board

Sensors

• HDC1080 (I2C): Temperature and humidity sensor

Display

• 2.4-inch TFT LCD, 240×320 resolution

• Capacitive touch panel with FT6336 touch controller

• SPI interface, driven by ILI9341 display controller

Storage

• microSD card slot (SPI interface)

• 16 MB SPI NOR Flash memory (W25Q128JVSIQ)

CAN Module

• CAN transceiver (SN65HVD230) onboard

• Supports reliable Controller Area Network (CAN) communication

• Suitable for industrial and automotive applications

USB to UART Converter

• Onboard USB to UART bridge for serial communication and debugging

• Enables easy connection to a PC for monitoring or flashing data

Package Includes:

1x Fastbit 32F407DISC_IoT_LCD_Shield
